Some Specs:

  • 2MP digital camera
  • Hotswappable battery
  • IP52 protection
  • Size: W240 x D240 x H566 mm

Product Info:

Small size, big performance

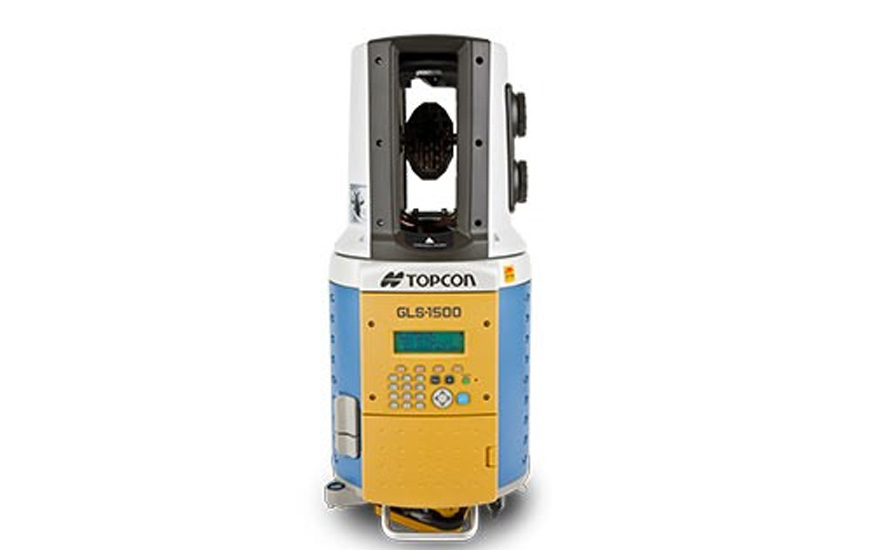

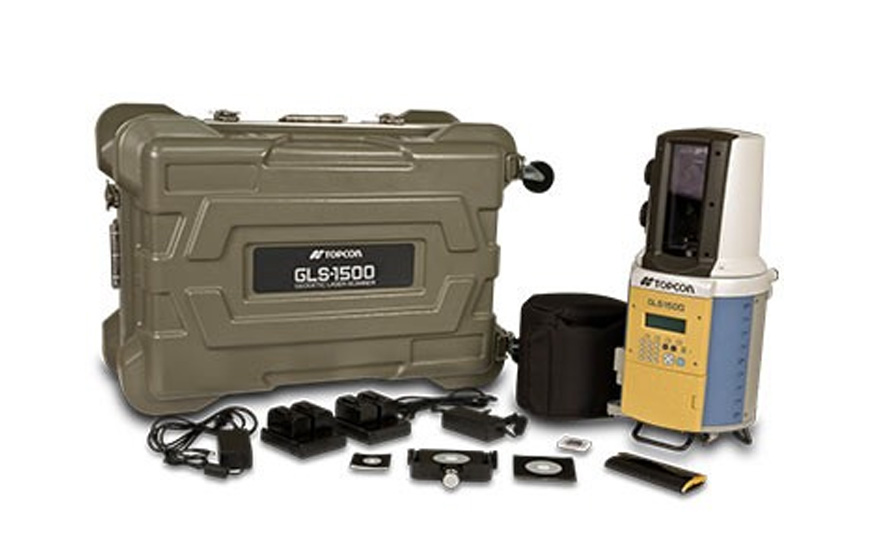

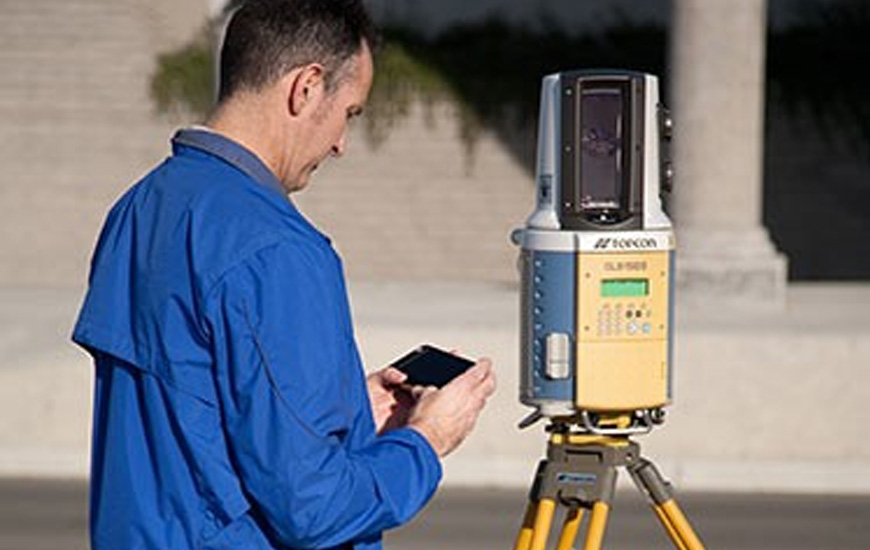

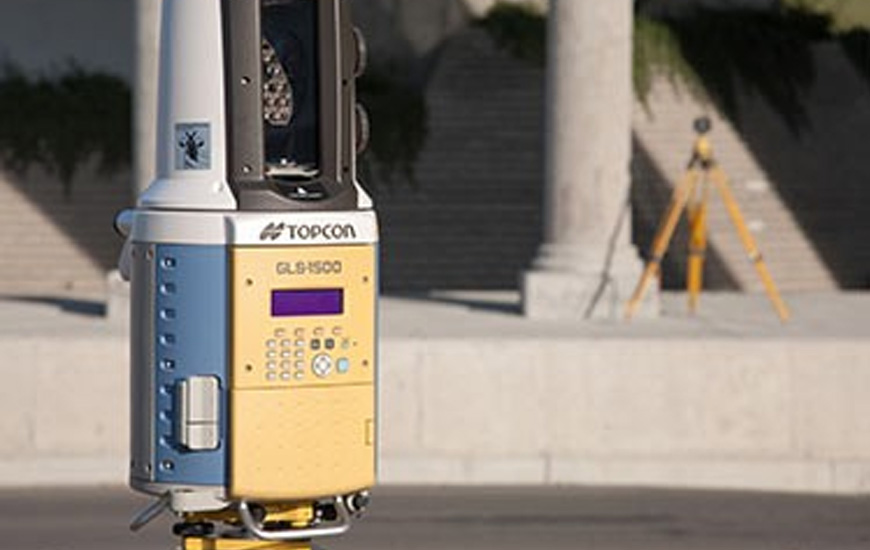

Topcon’s GLS-1500 laser scanner leaves nothing behind—except the competition. The operator-friendly design allows for quick and hassle-free setups which saves time and improves productivity. With batteries and data collector on-board, Topcon’s GLS-1500 is lightweight and cable-free. Transportation is a cinch. While other laser scanners take two people to unload, setup, operate, and load, the GLS-1500 is a one-man instrument.

This robust scanner sends out a laser beam that captures data at 30,000 points per second at a range of 500 ft. (150m) to a typical surface, and with an extended range to 1100 ft. (330m) for more reflective surfaces. Unique to Topcon’s GLS-1500 is the mechanical ability to select from multiple lens arrays to control the laser beam. This provides consistent 0.16 in. (4mm) accuracy throughout the range from 3 ft. to 500 ft. (1m to 150m).

Key Features:

  • On-board Lithium-ion Batteries
  • Dual Axis Compensators
  • Wireless LAN && USB Connectivity
  • 30,000 points/second scan rate
  • 4mm @ 150m single point accuracy
  • Compact all in 1 design
